Specification Details

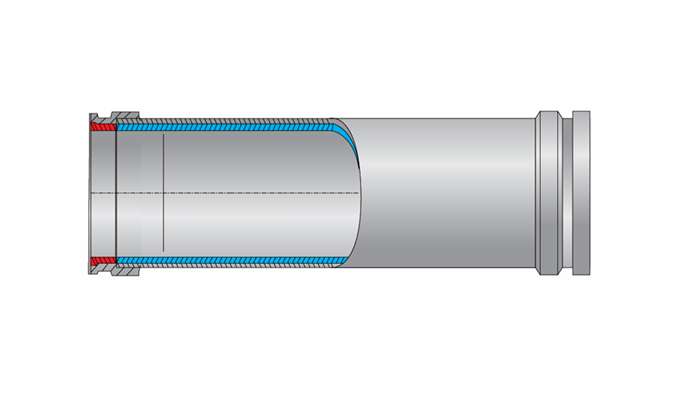

Product Name: twin wall concrete pump delivery tube
Material:inner 65Mn or M600, outer 20#
Length 3m (customizable )
Model Number:DN125
Weight:22.96kg/m
Thickness::3+2mm , 2.5+2mm
Reference lifetime:25,000-40,000CBM

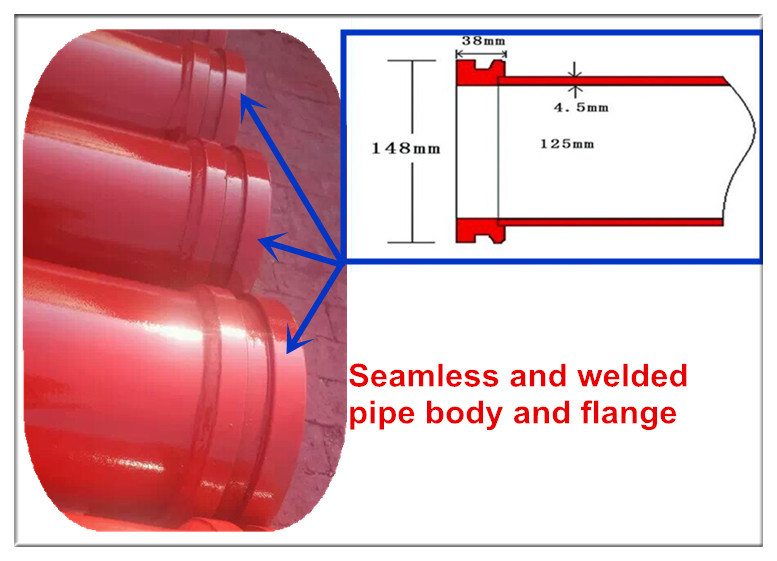

Flange type:SK148mm SK157mm
Surface treatment: induction hardened+heat treatment
Hardness:62-65 HRC
Working pressure:85-125bar
Connection type clamp connection
Cleaning way use cleaning ball
| Twin-wall pipe | |||||||
| Model No. | Outer Diameter (mm) | Inner Thinckness (mm) | Outside Thinckness (mm) | Length(mm) | Inner Mat. | Outside Mat. | Weight (KG) |
| 125 | 133 | 2.5 | 2 | 3000 | Alloy | 20# | 45 |
| 125 | 133 | 3 | 2 | 3000 | Alloy | 20# | 50 |
| 125 | 140 | 5 | 2 | 3000 | Alloy | 20# | 71 |
