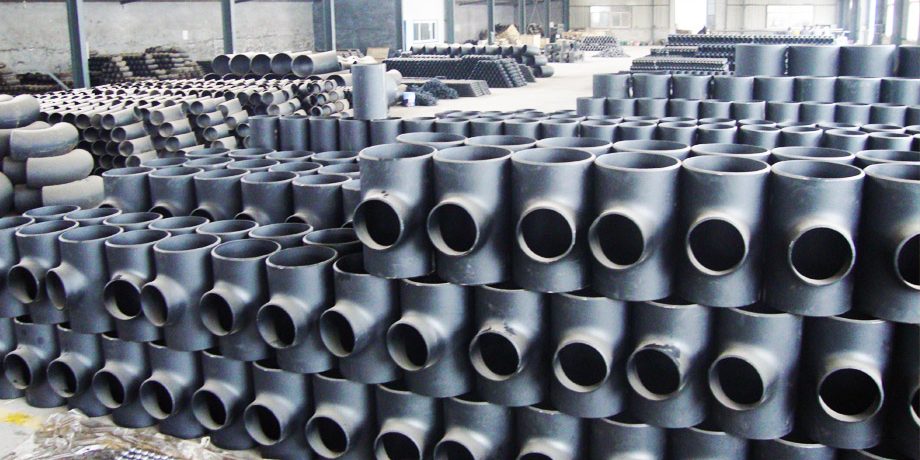

Equal and Reducing Tees

Type	Equal/Unequal, Straight/Reducing
Standard	API 6H, ANSI,MSS ,EN, DIN, JIS, BS, GB,others
Out Diameter	21.3mm – 1828.8mm
Wall Thickness	1.8 – 160mm
Steel Grade	A234WPB S275, S275JR, S355JRH, S355J2H WP304,WP304L,WP316,WP316L,WP321 A234 WP11,WP5,WP9,WP91,WP22,WP12,WB36, API 6H: GR B, X42, X46, X56, X60, X65, X70,X80,X100 Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface	Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Butt Welded Equal Tees

MSS SP-75 ANSI B16.9 (in mm) * Wellgrow’s standard.

Outlet dimension “M” for run sizes 14 and larger is recommended but not mandatory.

Nominal			Outside Diameter			Center to End
Nominal			At Bevel D			Center to End
Pipe Size			At Bevel D
	(NPS)		Run	Outlet		Run		Outlet (1)
	(NPS)		Run	Outlet		C		M
						C		M
1/2	x	1/2	21.3	21.3	25.4		25.4
1/2	x	3/8		17.1			25.4
1/2	x	1/4		13.7			25.4
3/4	x	3/4	26.7	26.7	28.4		28.4
3/4	x	1/2		21.3			28.4
3/4	x	3/8		17.1			28.4
1	x	1	33.4	33.4	38.1		38.1
1	x	3/4		26.7			38.1
1	x	1/2		21.3			38.1
1-1/4	x	1-1/4	42.2	42.2	47.8		47.8
1-1/4	x	1		33.4			47.8
1-1/4	x	3/4		26.7			47.8
1-1/4	x	1/2		21.3			47.8
1-1/2	x	1-1/2	48.3	48.3	57.2		57.2
1-1/2	x	1-1/4		42.2			57.2
1-1/2	x	1		33.4			57.2
1-1/2	x	3/4		26.7			57.2
1-1/2	x	1/2		21.3			57.2
2	x	2	60.3	60.3	63.5		63.5
2	x	1-1/2		48.3			60.5
2	x	1-1/4		42.2			57.2
2	x	1		33.4			50.8
2	x	3/4		26.7			44.4
2	x	1/2*		21.3
2-1/2	x	2-1/2	73.0	73.0	76.2		76.2
2-1/2	x	2		60.3			69.8
2-1/2	x	1-1/2		48.3			66.5
2-1/2	x	1-1/4		42.2			63.5
2-1/2	x	1		33.4			57.2
3	x	3	88.9	88.9	85.9		85.9
3	x	2-1/2		73.0			82.6
3	x	2		60.3			76.2
3	x	1-1/2		48.3			73.2
3	x	1-1/4		42.2			69.8
3	x	1*		33.4
3-1/2	x	3-1/2	101.6	101.6	95.2		95.2
3-1/2	x	3		88.9			91.9
3-1/2	x	2-1/2		73.0			88.9
3-1/2	x	2		60.3			82.6
3-1/2	x	1-1/2		48.3			79.2

	Nominal		Outside Diameter			Center to End
	Nominal		At Bevel D			Center to End
	Pipe Size		At Bevel D
	(NPS)		Run	Outlet		Run		Outlet (1)
	(NPS)		Run	Outlet		C		M
						C		M
4	x	4	114.3	114.3	104.6		104.6
4	x	3-1/2		101.6			101.6
4	x	3		88.9			98.6
4	x	2-1/2		73.0			95.2
4	x	2		60.3			88.9
4	x	1-1/2		48.3			85.9
4	x	1-1/4		42.2
4	x	1*		33.5
5	x	5	141.3	141.3	124.0		124.0
5	x	4		114.3			117.3
5	x	3-1/2		101.6			114.3
5	x	3		88.9			111.3
5	x	2-1/2		73.0			108.0
5	x	2		60.3			104.6
5	x	1-1/2*		48.3
6	x	6	168.3	168.3	142.7		142.7
6	x	5		141.3			136.7
6	x	4		114.3			130.0
6	x	3-1/2		101.6			127.0
6	x	3		88.9			124.0
6	x	2-1/2		73.0			120.6
6	x	2*		60.3
8	x	8	219.1	219.1	177.8		177.8
8	x	6		168.3			168.1
8	x	5		141.3			162.1
8	x	4		114.3			155.4
8	x	3-1/2		101.6			152.4
8	x	3*		88.9
10	x	10	273.1	273.1	215.9		215.9
10	x	8		219.1			203.2
10	x	6		168.3			193.5
10	x	5		141.3			190.5
10	x	4		114.3			184.2
12	x	12	323.9	323.9	254.0		254.0
12	x	10		273.1			241.3
12	x	8		219.1			228.6
12	x	6		168.3			218.9
12	x	5		141.3			215.9

Butt Welded Equal Tees

MSS SP-75 ANSI B16.9 (in mm) * Wellgrow’s standard.

Outlet dimension “M” for run sizes 14 and larger is recommended but not mandatory.

		Nominal			Outside Diameter		Center to End
		Nominal			At Bevel D		Center to End
	Pipe Size				At Bevel D
			(NPS)		Run	Outlet	Run	Outlet (1)
			(NPS)		Run	Outlet	C	M
							C	M
14			x	14	355.6	355.6	279.4	279.4
14			x	12		323.9		269.7
14			x	10		273.1		257.0
14			x	8		219.1		247.6
14			x	6		168.3		238.3
16			x	16	406.4	406.4	304.8	304.8
16			x	14		355.6		304.8
16			x	12		323.9		295.1
16			x	10		273.1		282.4
16			x	8		219.1		373.0
16			x	6		168.3		263.7
18			x	18	457.2	457.2	342.9	342.9
18			x	16		406.4		330.2
18			x	14		355.6		330.2
18			x	12		323.9		320.5
18			x	10		273.1		307.8
18			x	8		219.1		298.4
20			x	20	508.0	508.0	381.0	381.0
20			x	18		457.2		369.3
20			x	16		406.4		355.6
20			x	14		355.6		355.6
20			x	12		323.9		345.9
20			x	10		273.1		333.2
20			x	8		219.1		323.8
22			x	22	558.8	558.8	419.1	419.1
22			x	20		508.0		406.4
22			x	18		457.2		393.7
22			x	16		406.4		381.0
22			x	14		355.6		381.0
22			x	12		323.9		371.3
22			x	10		273.1		358.6
24			x	24	609.6	609.6	431.8	431.8
24			x	22		558.8		431.8
24			x	20		508.0		431.8
24			x	18		457.2		419.1
24			x	16		406.4		406.4
24			x	14		355.6		406.4
24			x	12		323.9		396.7
24			x	10		273.1		384.0
26			x	26	660.4	660.4	495.3	495.3
26			x	24		609.6		482.6

	Nominal		Outside Diameter		Center to End
	Nominal		At Bevel D		Center to End
	Pipe Size		At Bevel D
	Pipe Size				Run	Outlet (1)
	(NPS)		Run	Outlet	Run	Outlet (1)
	(NPS)		Run	Outlet	C	M
					C	M
26	x	22		558.8		469.9
26	x	20		508.0		457.2
26	x	18		457.2		444.5
26	x	16		406.4		431.8
26	x	14		355.6		431.8
26	x	12		323.1		422.1
28	x	28	711.2	711.2	520.7	520.7
28	x	26		660.4		520.7
28	x	24		609.6		508.0
28	x	22		558.8		495.3
28	x	20		508.0		482.6
28	x	18		457.2		469.9
28	x	16		406.4		457.2
28	x	14		355.6		457.2
28	x	12		323.1		447.5
30	x	30	762.0	762.0	558.8	558.8
30	x	28		711.2		546.1
30	x	26		660.4		546.1
30	x	24		609.6		533.4
30	x	22		558.8		520.7
30	x	20		508.0		508.0
30	x	18		457.2		495.3
30	x	16		406.4		482.6
30	x	14		355.6		482.6
30	x	12		323.9		472.6
30	x	10		273.1		460.2
32	x	32	812.8	812.8	596.9	596.9
32	x	30		762.0		584.2
32	x	28		711.2		571.5
32	x	26		660.4		571.5
32	x	24		609.6		558.8
32	x	22		558.8		546.1
32	x	20		508.0		533.4
32	x	18		457.2		520.7
32	x	16		406.4		508.0
32	x	14		355.6		508.0
34	x	34	863.6	863.6	635.0	635.0
34	x	32		812.8		622.3
34	x	30		762.0		609.6
34	x	28		711.2		596.9
34	x	26		660.4		596.9

Butt Welded Equal Tees

MSS SP-75 ANSI B16.9 (in mm) * Wellgrow’s standard.

Outlet dimension “M” for run sizes 14 and larger is recommended but not mandatory.

		Nominal			Outside Diameter		Center to End
					Outside Diameter
					At Bevel D
	Pipe Size				At Bevel D
			(NPS)		Run	Outlet	Run	Outlet (1)
			(NPS)		Run	Outlet	C	M
							C	M
34			x	24		609.6		584.2
34			x	24		609.6		584.2
34			x	22		558.8		571.5
34			x	20		508.0		558.8
34			x	18		457.2		546.1
34			x	18		457.2		546.1
34			x	16		406.4		533.4
36			x	36	914.4	914.4	673.1	673.1
36			x	34		863.6		660.4
36			x	34		863.6		660.4
36			x	32		812.8		647.7
36			x	30		762.0		635.0
36			x	28		711.2		622.3
36			x	28		711.2		622.3
36			x	26		660.4		622.3
36			x	24		609.6		609.6
36			x	22		558.8		596.9
36			x	22		558.8		596.9
36			x	20		508.0		584.2
36			x	18		457.2		571.5
36			x	16		406.4		558.8
36			x	16		406.4		558.8
38			x	38	965.2	965.2	711.2	711.2
38			x	36		914.4		711.2
38			x	34		863.6		698.5
38			x	34		863.6		698.5
38			x	32		812.8		685.8
38			x	30		762.0		673.1
38			x	28		711.2		647.7
38			x	28		711.2		647.7
38			x	26		660.4		647.7
38			x	24		609.6		635.0
38			x	22		558.8		622.3
38			x	22		558.8		622.3
38			x	20		508.0		609.6
38			x	18		457.2		596.9
40			x	40	1016.0	1016.0	749.3	749.3
40			x	40	1016.0	1016.0	749.3	749.3
40			x	38		965.2		749.3
40			x	36		914.4		736.6
40			x	34		863.6		723.9
40			x	34		863.6		723.9
40			x	32		812.8		711.2
40			x	30		762.0		698.5
40			x	28		711.2		673.1
40			x	28		711.2		673.1
40			x	26		660.4		673.1
40			x	24		609.6		660.4
40			x	22		558.8		647.7
40			x	22		558.8		647.7
40			x	20		508.0		635.0
40			x	18		457.2		622.3
42			x	42	1066.8	1066.8	762.0	711.2
42			x	42	1066.8	1066.8	762.0	711.2
42			x	40		1016.0		711.2

	Nominal		Outside Diameter		Center to End
	Nominal		At Bevel D		Center to End
	Pipe Size		At Bevel D
	(NPS)		Run	Outlet	Run	Outlet (1)
	(NPS)		Run	Outlet	C	M
					C	M
42	x	38		965.2		711.2
42	x	36		914.4		711.2
42	x	34		863.6		711.2
42	x	32		812.8		711.2
42	x	30		762.0		711.2
42	x	28	1066.8	711.2	762.0	698.5
42	x	26		660.4		698.5
42	x	24		609.6		660.4
42	x	22		558.8		660.4
42	x	20		508.0		660.4
42	x	18		457.2		647.7
42	x	16		406.4		635.0
44	x	44	1117.6	1117.6	812.8	762.0
44	x	42		1066.8		762.0
44	x	40		1016.0		749.3
44	x	38		965.2		736.6
44	x	36		914.4		723.9
44	x	34		863.6		723.9
44	x	32		812.8		711.2
44	x	30		762.0		711.2
44	x	28		711.2		698.5
44	x	26		660.4		698.5
44	x	24		609.6		698.5
44	x	22		558.8		685.8
44	x	20		508.0		685.8
46	x	46	1168.4	1168.4	850.9	800.1
46	x	44		1117.6		800.1
46	x	42		1066.8		787.4
46	x	40		1016.0		774.7
46	x	38		965.2		762.0
46	x	36		914.4		762.0
46	x	34		863.6		749.3
46	x	32		812.8		749.3
46	x	30		762.0		736.6
46	x	28		711.2		736.6
46	x	26		660.4		736.6
46	x	24		609.6		723.9
46	x	20*		508.0		723.9
48	x	48	1219.2	1219.2	889.0	838.2
48	x	46		1168.4		838.2
48	x	44		1117.6		838.2

Butt Welded Equal Tees

MSS SP-75 ANSI B16.9 (in mm) * Wellgrow’s standard.

Outlet dimension “M” for run sizes 14 and larger is recommended but not mandatory.

		Nominal			Outside Diameter		Center to End
					Outside Diameter
					At Bevel D
	Pipe Size				At Bevel D
			(NPS)		Run	Outlet	Run	Outlet (1)
			(NPS)		Run	Outlet	C	M
							C	M
48			x	42		1066.8		812.8
48			x	42		1066.8		812.8
48			x	40		1016.0		812.8
48			x	38		965.2		812.8
48			x	36		914.4		787.4
48			x	36		914.4		787.4
48			x	34		863.6		787.4
48			x	32	1219.2	812.8	889.0	787.4
48			x	44		1117.6		838.2
48			x	44		1117.6		838.2
48			x	42		1066.8		812.8
48			x	40		1016.0		812.8
48			x	38		965.2		812.8
48			x	38		965.2		812.8
48			x	36		914.4		787.4
48			x	34		863.6		787.4
48			x	32		812.8		787.4
48			x	32		812.8		787.4
48			x	30		762.0		762.0
48			x	28		711.2		762.0
48			x	26		660.4		762.0
48			x	26		660.4		762.0
48			x	24		609.6		736.6
48			x	22		558.8		736.6
52			x	52*	1320.8	1320.8	965.2	914.4
52			x	52*	1320.8	1320.8	965.2	914.4
52			x	48*		1219.2		863.6
52			x	44*		1117.6		812.8
52			x	40*		1016.0		762.0
52			x	40*		1016.0		762.0
54			x	54*	1371.6	1371.6	1003.3	952.5
54			x	52*		1320.8		914.4
54			x	48*		1219.2		863.6
54			x	48*		1219.2		863.6
54			x	44*		1117.6		863.6
54			x	40*		1016.0		812.8
54			x	28*		711.2		787.4
54			x	28*		711.2		787.4
54			x	20*		508.0		787.4
56			x	56*	1422.4	1422.4	1041.4	965.2
56			x	52*		1320.8		914.4
56			x	52*		1320.8		914.4
56			x	48*		1219.2		863.6
56			x	44*		1117.6		812.8
56			x	40*		1016.0		812.8
56			x	40*		1016.0		812.8
56			x	28*		711.2		812.8
56			x	20*		508.0		812.8
60			x	60*	1524.0	1524.0	1117.6	1016.0
60			x	60*	1524.0	1524.0	1117.6	1016.0
60			x	56*		1422.4		965.2
60			x	52*		1320.8		914.4
60			x	48*		1219.2		863.6
60			x	48*		1219.2		863.6

	Nominal		Outside Diameter		Center to End
	Nominal		At Bevel D		Center to End
	Pipe Size		At Bevel D
	(NPS)		Run	Outlet	Run	Outlet (1)
	(NPS)		Run	Outlet	C	M
					C	M
60	x	40*		1016.0		863.6
60	x	28*		711.2		863.6
60	x	20*		508.0		863.6
64	x	64*	1626.0	1626.0	1194.0	1092.0
64	x	60*		1524.0		1067.0
64	x	56*		1422.0		1016.0
64	x	52*		1321.0		965.0
64	x	48*		1219.0		914
66	x	66*	1676.4	1676.4	1219.2	1066.8
68	x	68*	1727.0	1727.0	1270.0	1168.0
68	x	64*		1626.0		1143.0
68	x	60*		1524.0		1118.0
68	x	56*		1422.0		1067.0
68	x	52*		1321.0		1016.0
68	x	48*		1219.0		965.0
72	x	72*	1829.0	1829.0	1320.0	1245.0
72	x	68*		1727.0		1219.0
72	x	64*		1626.0		1194.0
72	x	60*		1524.0		1168.0
72	x	56*	1829.0	1422.0	1320.0	1118.0
72	x	52*		1321.0		1067.0
72	x	48*		1219.0		1016.0
76	x	76*	1930.0	1930.0	1422.0	1320.0
76	x	72*		1829.0		1295.0
76	x	68*		1727.0		1270.0
76	x	64*		1626.0		1245.0
76	x	60*		1524.0		1219.0
76	x	56*		1422.0		1168.0
76	x	52*		1321.0		1118.0
76	x	48*		1219.0		1067.0
80	x	80*	2032.0	2032.0	1499.0	1397.0
80	x	76*		1930.0		1372.0
80	x	72*		1829.0		1346.0
80	x	68*		1727.0		1321.0
80	x	64*		1626.0		1295.0
80	x	60*		1524.0		1270.0
80	x	56*		1422.0		1219.0
80	x	52*		1321.0		1168.0
80	x	48*		1219.0		1118.0

Butt Welded Equal Tees

Butt Welded Equal Tees

Butt Welded Equal Tees

Butt Welded Equal Tees

Related Posts

Leave a Reply Cancel reply
