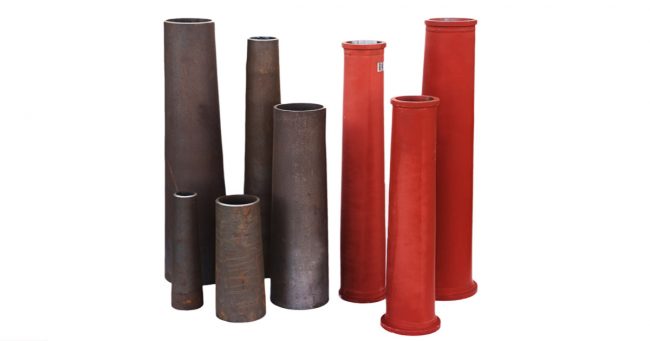

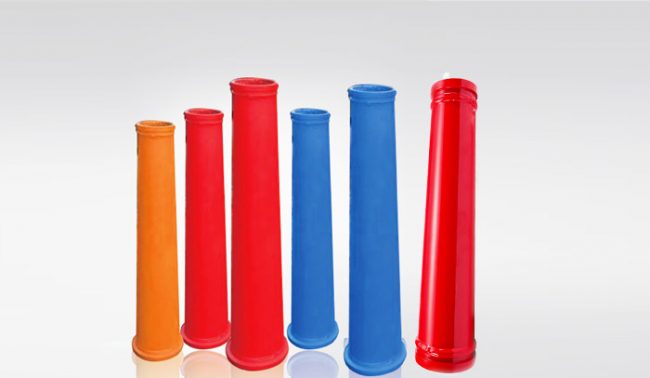

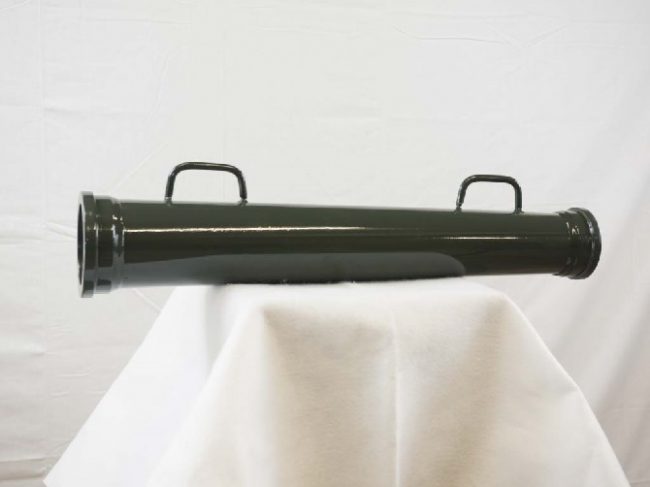

Concrete Pipe Reducer-SCHWING Concrete pump Spare parts

Concrete Pump ReducerLeave a comment

SCHWING Concrete pump Spare parts Concrete Pipe Reducer is made from seamless tubing. it makes the reducer stronger and longer lasting! Most reducers come with handles. Concrete Pipe Reducer Specifications: Name Specifications Flange ends Concrete Pump Twin Wall Reducer 6 ” -5 ” ×1600mm HDSKZXMF weld-on collars 6 ” -5 ” ×1500mm 6 ” -5 ” ×1400mm 6 ” -5 ” ×1200mm 6 ” -5 ” ×500mm Single wall Concrete Pump Reducer 7 ” -6 ” ×1300mm 7 ” -6 ” ×1100mm 7 ” -6 ” ×830mm 7 ” -6 ” ×500mm 7 ” -5 ” ×1200mm 6 ” -5 ” ×3000mm 6 ” -5 ” ×1800mm 6 ” -5 ” ×1600mm 6 ” -5 ” ×1500mm 6 ” -5 ” ×1400mm 6 ” -5 ” ×1200mm 6 ” -5 ” ×1100mm 6 ” -5 ” ×1000mm 6”-5” ×500mm 5”-4” ×1950mm…

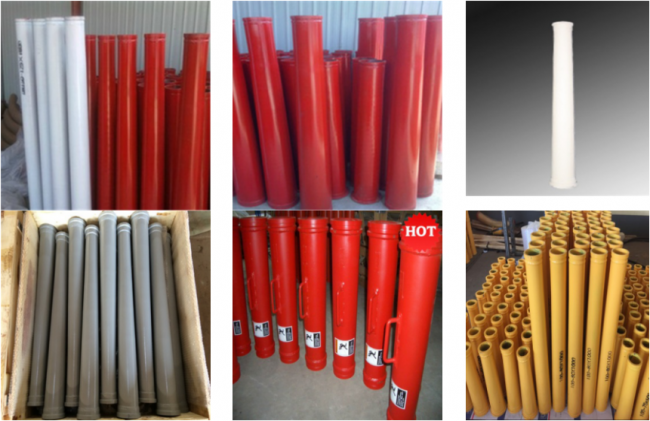

Concrete Pump Reducing Pipe,Sermac Spare Parts

Concrete Pump ReducerLeave a comment

  name concrete pump reducing pipe size DN180–125 (7—5 ) OD194–140 XWT6.25mmXLength1.5m OD194–140 XWT6.25mmXLength1.2m OD194–140XWT6.25mmXLength1m OD194–140 XWT8mmXLength1.5m OD194–140XWT8mmXLength1.2m OD194–140 XWT8mmXLength1m   DN150—125 (6—5) OD159–140XWT6.25mmXLength1.5m OD159–140XWT6.25mmXLength1.2m OD159–140 XWT6.25mmXLength1m OD159–140XWT6.25mmXLength0.5m OD159–140XWT8mmXLength1.5m OD159–140XWT8mmXLength1.2m OD159–140 XWT8mmXLength1m OD159–140XWT8mmXLength0.5m OD159–140XWT8mmXLength0.2m   DN100—-80 (4—-3) OD114–89 XWT6mmXLength1.2m OD114–89 XWT6mmXLength1m OD114–89 XWT6mmXLength0.5m Other sizes and types upon request Material ST37.0, 20#steel,Q235 ,35# steel, Mn13…

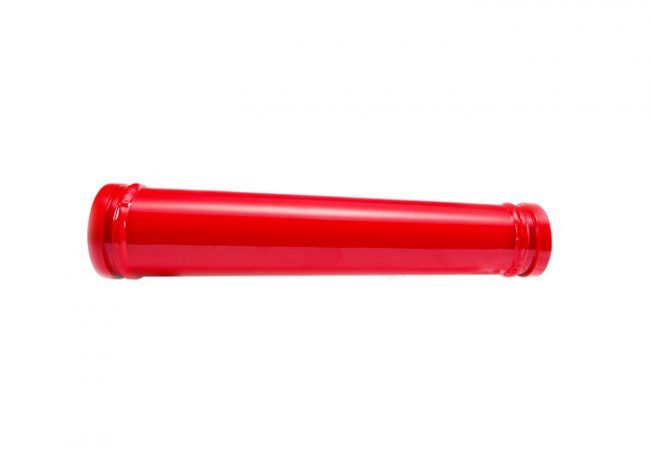

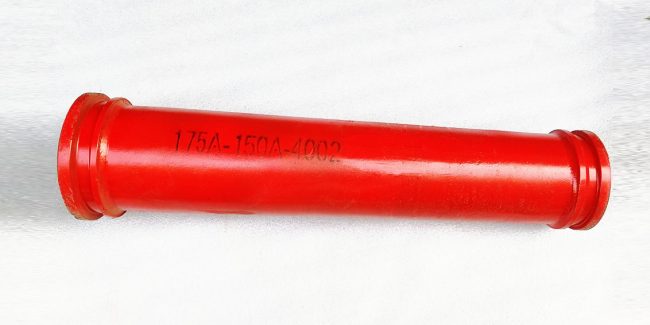

Concrete Pump Reducing Pipe

Concrete Pump ReducerLeave a comment

Name Concrete Pump Reducing Pipe Size Length(mm) Wall Thickness (mm) Brands of Pump Truck DN175-150*1400 10 Zoomlion DN175-150*1300 10 XCMG DN175-150*1200 10 Sany DN175-150*830 10 XCMG DN150-125*1500 10 Zoomlion DN150-125*1400 10 Zoomlion DN150-125*1200 10 Sany DN150-140*900 10 Zoomlion DN150-125*500 10 Zoomlion Other sizes and types according to clients’actual needs Material ST52(16Mn), 45#steel and so on…

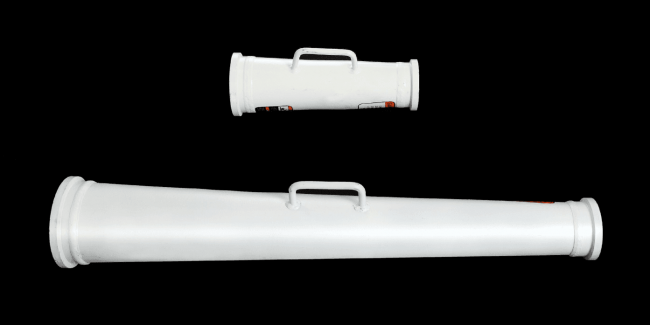

Concrete Pump Reducer Pipe

Concrete Pump ReducerLeave a comment

Concrete pump reducer pipe Material: st52, 20# Steel and other material Size: 5″-4″*918mm (other size also available) Weight: 17kg (6mm with SK flange) Processing way : Hot expanding Flange type : SK ( HD,ZX,MF can do) Reference lifetime: 20000CBM Connection type : clamp Cleaning way : use cleaning ball Common Types: Model Specifications Thickness Weight Flange type…
