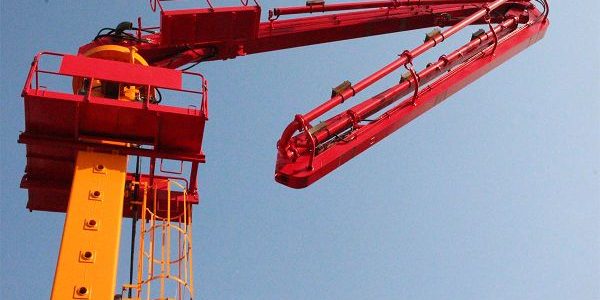

concrete placing boom divided into two types: stationary and rail-mounted.
There are many choices when using, the tower s type are tubular and scaffolding, equipped varied bottoms or rails. Adjustable height according to job requirements.
Multiple rational combinations for a variety of requirements and scientific safely protecting structures for higher reliability.
Widely used in construction buildings, such as the construction of precast concrete beams, bridges, nuclear power plants, infrastructures, harbors and ports.
hydraulic concrete placing boom can be placed in suitable places required without being fixed.
It features compact structure, light weight and can be lifted as a whole by a crane.
with excellent maneuverability, hydraulic concrete placing boom can meet the requirements for concrete placement on different jobsites, and is ideal for concrete punping and placing.
Easy operation, reliable safety and economical purchase.
Conele mobile placing boom is featured by “z” type three folding arms, 360° rotation. It can pitch, extend and fold. Within the scope of boom length, our mobile placing boom can achieve full range of three-dimensional space pouring without dead band. Daswell mobile placing boom can easily realize the pouring of wall, pipe, pile and column, etc. It is fully hydraulic. Our mobile placing boom adopts button control with easy operation and stable movement. Concrete is pumped in the pedestal and delivered by the pipeline to be placed. With excellent maneuverability, it can meet the requirement for concrete placement in different construction sites. Work shop All of our products are produced according to the International Quality Standards, such as CE from Europe. The management of our company is strictly operated by the ISO 9001:2000 quality management system. Zero-tolerance for inferiority is our principle.
Angle of altitude: 0°~90°
Revolution working range: 0°~360°
Power : 4kW
Working pressure: 20MPa
Revolution speed: 0.2~0.3r/min
Pipe type: φ125
Soft pipe length: 3m
Landing leg track: 4000×4000mm
Weight: 3230kg
Balance weight: 2×1100kg
Size: 8900×4000×2585mm
