The concrete placing boom is the assorted equipment of concrete pump. Its application extends the delivery range of concrete, efficiently solves the problem of wall painting and plays an important role in enhancing construction efficiency and reducing the labor intensity.
This series of concrete placing boom have reasonable design and reliable structure. The placing structure adopts 360 degree rotary arm support. The mobile concrete placing boom is operated by hands and can rotate flexibly. The tower is of a proper height so you can change the placing position freely only by pulling the robe easily. So it is highly efficient, reliable and economic.
Features of spider concrete placing boom, concrete distributor
1 Compact structure, easily moved, highly movable and flexible
2 Three foldable arms,360 degree swing, without confined placing areas
3 Without being fixed while working
4 Easy operation and low cost maintenance
5 Fully hydraulic system, highly stable and reliable
6 Separate modular parts for easy and fast installation with light weight

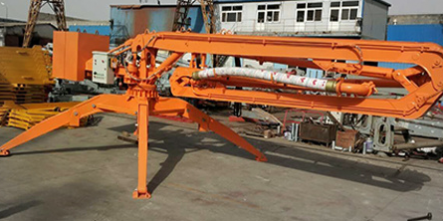

15m: Main technical parameter of Trailer Mobile Spider Concrete Placing Boom
| PLACING RADIUS | 15000mm |
| PLACING HEIGHT | 14120mm |
| PLACING DEPTH | 10300mm |
| BOOM ARM ELEVATION TRAVEL | 0°~90° |
| SLEWING RANGE | 360° |
| HYDRAULIC SYSTEM POWER | 4kW |
| WORKING PRESSURE | 20MPa |
| SLEWING SPEED | 0.2~0.3r/min |
| CONCRETE PIPE DIAMETER | Φ125×4 |
| RUBBER HOSE | 3m |
| OUTRIGGER SPAN | 4000×4000mm |
| TOTAL WEIGHT | 4500kg |
| COUNTERWEIGHT | 2×1100kg |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE | 67kN |
| THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION | 45kN |
| OVERALL DIMENSION | 8900×4000×2585mm |
