Manual Concrete Placing Boom

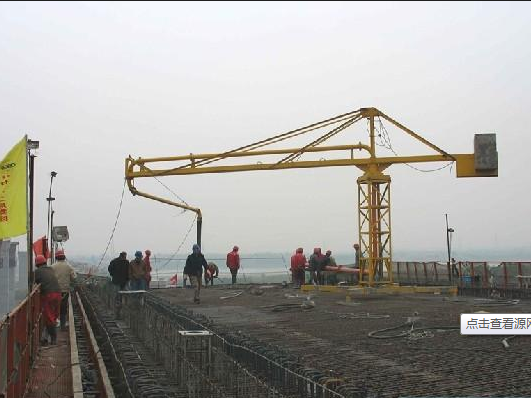

Manually operated concrete placing boom of 12m, 15m and 18m, is a new product of our company produced for enlarging the range of concrete pouring and increasing the mechanization level of pumping operation. It connects to concrete delivery pump as corollary equipment, which enlarges the pumping range of concrete, effectively solves the hard problem of material distributing in wall pouring, and plays an important role in improving operating efficiency and reducing labor intensity.Manual 13m concrete placing boom for sale
PERFORMANCE
1.It can be placed in suitable places without being fixed;
2.Excellent maneuverability, can meet different placing requirements
3.Easy operation, less maintenance
4.Compact structure, reliable and safety.
| Item | HG-12 | HG-15 | HG-18 |
| Working radius（m） | 12 | 15 | 18 |
| Hose length（m） | 3 | 3 | 3 |
| Tail Rotary radius（m） | 3.1 | 4.4 | 4.4 |
| Supporting legs span（m） | 3.3×3.3 | 3.3×3.3 | 3.3×3.3 |
| Rotation mode | manual | manual | manual |
| Rotation angle（°） | 0～360 | 0～360 | 0～360 |
| Concrete pipe dia. （mm） | Φ125 | Φ125 | Φ125 |
| Overall height（mm） | 6100 | 6100 | 6100 |
| Stand column section（mm） | 600×600 | 600×600 | 600×600 |
| Overall weight（kg） | 1400 | 1600 | 2500 |
| Balance weight（kg） | 1000 | 1200 | 1400 |
| Rotation support | Ma’anshan | Ma’anshan | Ma’anshan |
